Plantin Moretus Museum: Press 7
|
|
|
|
|
|
|
|
Description:
Location: Printing room.
Year: circa 1600 - circa 1799
Catalogue number: MPM.V.V.03.1.007
Builder: -
Press dimensions: length 168 cm, height: 193 cm, depth: 73 cm.
Platen dimensions: length xx cm, depth: xx cm. (Gaskell: 17 1/4 x 11 3/4 in.)
Platen material: metal
Spindle material: metal
Hose type: Modified Blaeu hose
One pull/two pull: two
Notes:
1. No headbolts?
2. Four wing nuts under the till?
3. Material for girth/rope?
Literature:
Gaskell, Philip. 1970. ‘A census of wooden presses.’ Journal of the printing historical society. (6), page 5. [B7]
Voet, Leon. 1969-1972. ‘The Golden Compasses. The History of the House of Plantin-Moretus.’ (2 volumes). Vangendt & Co, Amsterdam / Routledge & Kegan Paul, London / Abner Schram, New York. [Especially pages 136 – 142.]
Photgraphs: medium size. Clicking enlarges in new window.

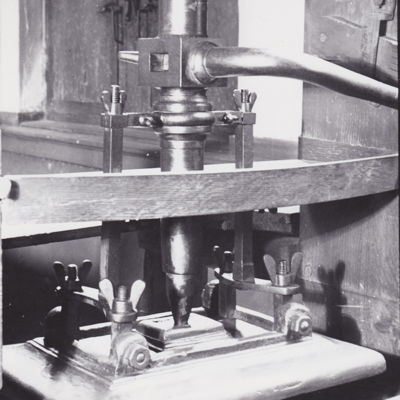

Photo: Karel van der Waarde, 2020.

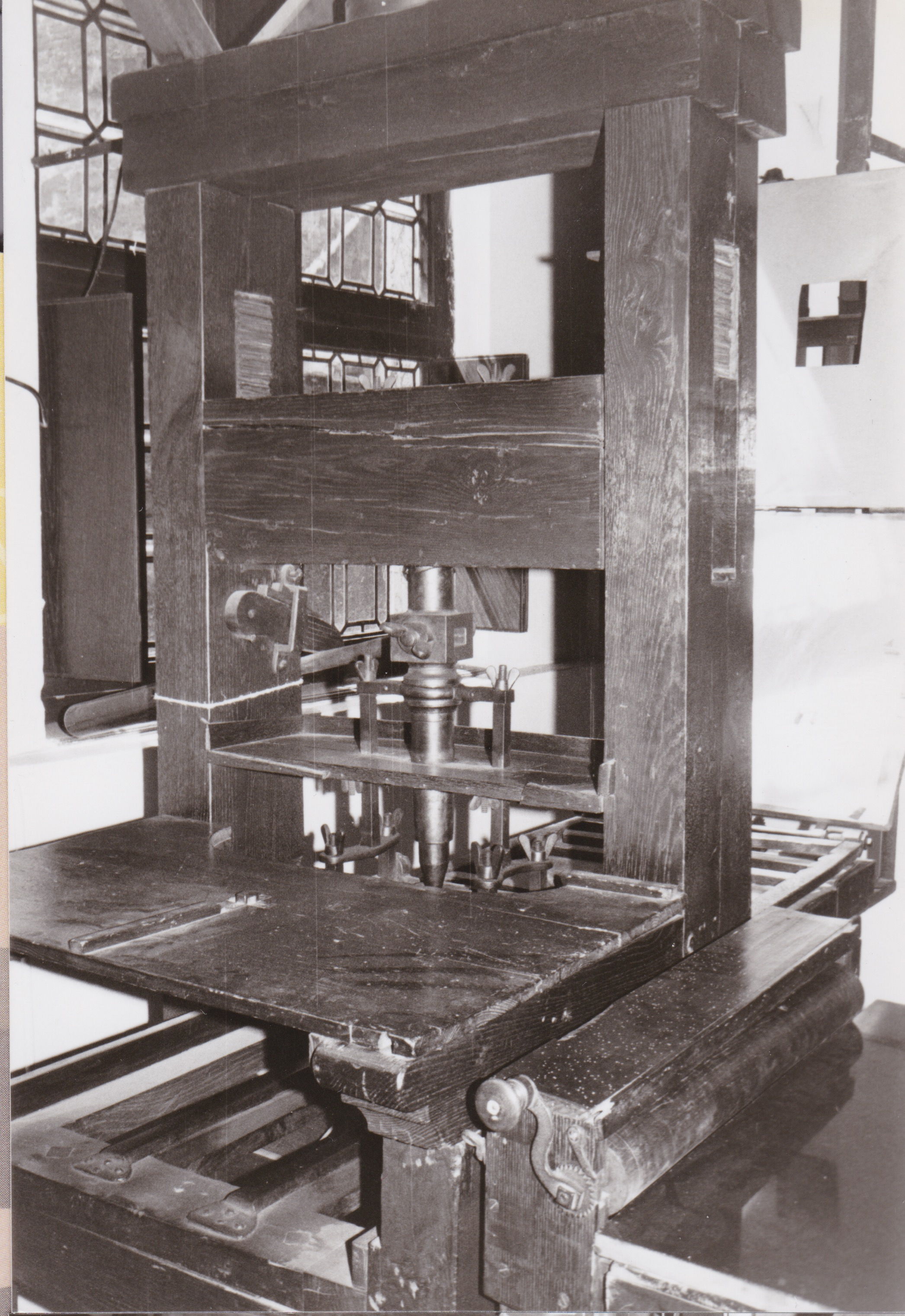

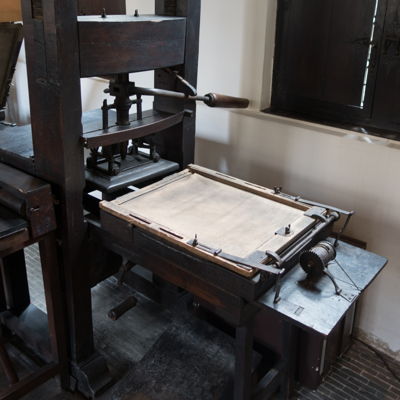

Photo: Thomas Quinn. 2014 [Source].
.jpg){kind=link}

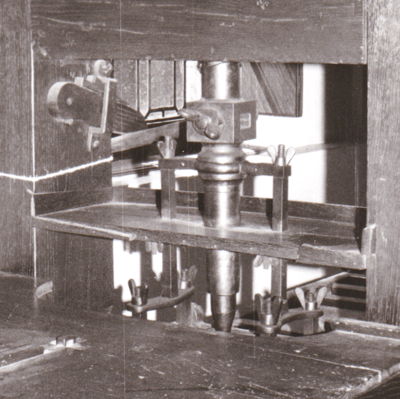

Photo: Frans Janssen.

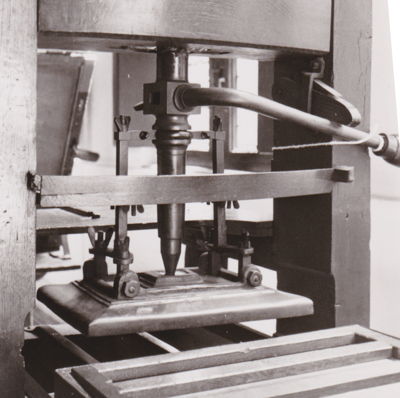

Photo: Frans Janssen.
Photo: Frans Janssen.

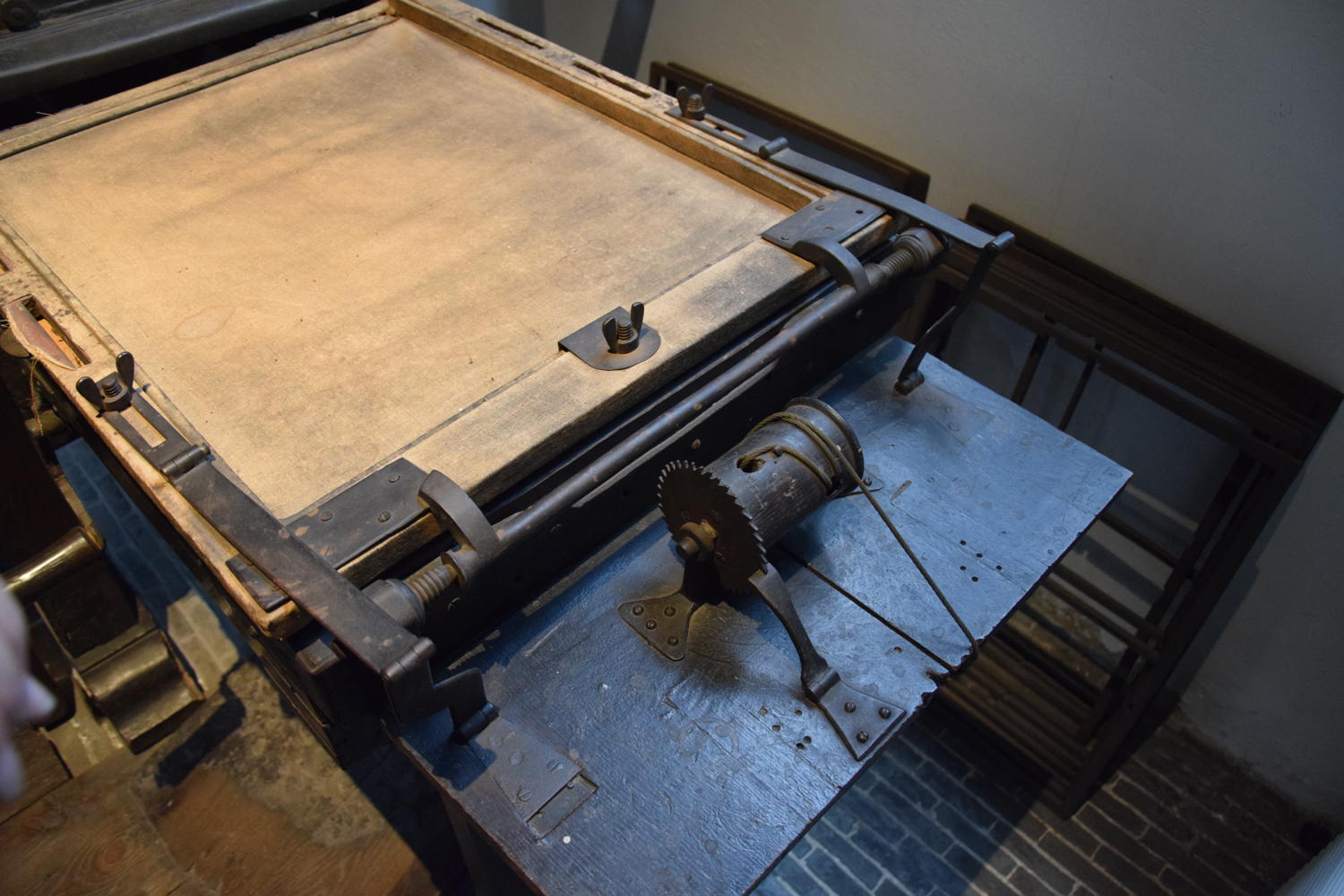

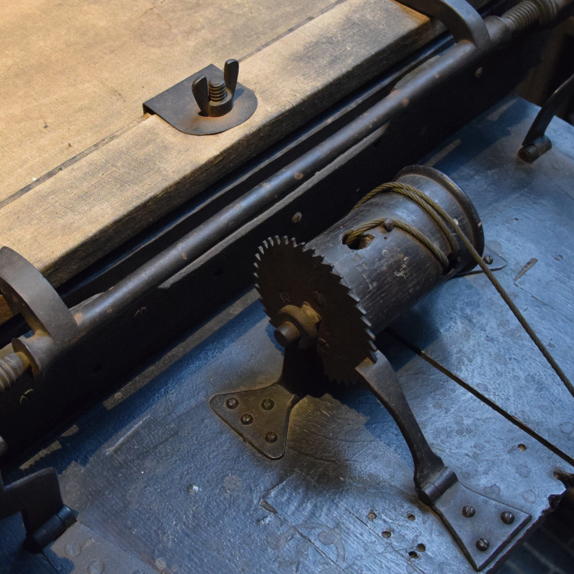

Photo: Karel van der Waarde, 2020.
